| Place of Origin: | China |
| Brand Name: | FORWARD FILTER & FITTING |
| Certification: | ISO9001 |
| Model Number: | 304,316,409,204 |
| Minimum Order Quantity: | 1 ton |
|---|---|
| Price: | negotiable |
| Packaging Details: | iron pallet, wood pallet, carton and wooden box |
| Delivery Time: | 25-35 days |
| Supply Ability: | 50000m/month. |
| Materia: | 316L Stainless Steel Epoxy Coated Spiral Welded Perforated Tube/Gas / Liquid / Vapor/ Light Diffusion | Perforated Tubing Capabilities: | High Speed Hole Punching, Cut-To-Length Perforated Tubing |
|---|---|---|---|
| Perforation Patterns: | Straight, Centers, Staggered | Seam Styles: | Straight Weld, Spiral Weld, Spiral Welded Louvered |
| Feature: | Precise Rolling, High Resistance To External Pressure. Can Be Used As Filter Frame, Big Bearing, High Roundness, Precise Filtering Capacity. | Wall Thickness: | 0.5～2.5mm (various Types Can Be Customized ) |
| High Light: | perforated metal pipe,perforated steel tube |
||

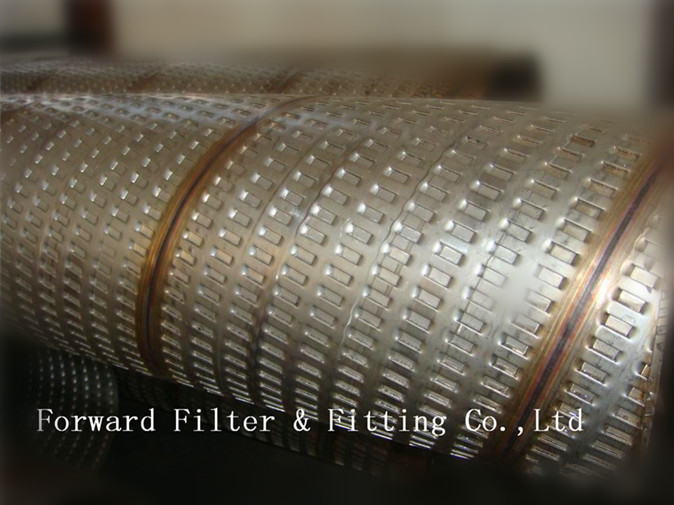

316L Stainless Steel Perforated Metal Tube For Tubing Strength And Decorative
We have rich experience in perforated tubes manufacture and we know
perforated tubes from materials, processing, welding, special treatment to its applications.
Description:
Aka: Spiral Perforated Tube/Pipe, Center Tube for Filter Element
Material: Ss304/304L/316/316L stainless steel, Mild steel, Aluminum, Copper, Monel, Hastelloy, Inconel, Titanium, etc.
Hole Diameter: Various to meet different requirements for tubing strength and filtration
Tube Diameter: 1/4’’-12’’ (6.35 ～ 304.8mm)
Wall Thickness: 0.5～2.5mm (special sizes can be customized )
Length: Customized
Finish:
Precise rolling: Hold tight tolerances or improve appearance and against high External pressure; Plating:
Prevent from corrosion for mild steel/carbon steel
Oiling, Degrease, Grit Blast, Acid pickling and passivation treatment
Electro polish to the stainless steel tubes
Coated by PVC, Epoxy and many others according to the requirements.
Uses:
(1) Protective sleeve for sand control screens
(2) Support core for strainers
(3) Purolator suction strainers
(4) Acoustical dampening
(5) Perforated tubes for oil well
(6) Exhaust tubes, Muffler tube
(7) Filtration / Separation Tubes (e.g center tube for air, oil, fuel, gas filters)
(8) Decorative items
(9) Gas / Liquid / Vapor/ Light Diffusion
(10)Structural Members
(11) EMI shielding
(12) Safety guards
(13) Grills or trim
Note: sample and special specifications are available on your request!
The strength of the spiral welded pipe is generally higher than straight seam welded pipe. Larger diameter can be produced by narrow black with spiral weld seam. We can also produce it with different pipe diameter using the same width of black. But compared with the same length of straight seam welded pipe, the length of welding line increased 30-100%, and the production speed is low. Therefore, relatively small diameter welded pipe are mostly adopts the straight seam welded pipe, larger diameter welded pipes are usually spiral welded pipe.
Basic Specification:
(1) Diameter and wall thickness:
|
Tube Diameter inch |
Thickness (Ga) |
24 |
22 |
20 |
19 |
18 |
16 |
14 |
13 |
12 |
11 |
|
inch |
0.024 |
0.030 |
0.036 |
0.042 |
0.048 |
0.060 |
0.075 |
0.090 |
0.105 |
0.120 |
|
|
mm |
0.61 |
0.76 |
0.91 |
1.06 |
1.21 |
1.52 |
1.90 |
2.28 |
2.66 |
3.04 |
|
|
11/16 - 1-1/8 |
17.5 - 28.5 |
|
|
|
|
|
|
|
|
|
|
|
1-1/16 - 1-1/4 |
27.0 - 31.7 |
|
|
|
|
|
|
|
|
|
|
|
1-5/16 - 1-3/4 |
33.3 – 44.5 |
|
|
|
|
|
|
|
|
|
|
|
1-13/16 - 2-1/4 |
46.0 – 57.2 |
|
|
|
|
For |
Spiral |
Bound |
Tubes |
|
|
|
2-5/16 - 2-5/8 |
58.7 - 66.7 |
|
|
|
|
|
|
|
|
|
|
|
2-11/16 - 2-7/8 |
68.3 - 73.0 |
|
|
|
|
|
|
|
|
|
|
|
2-15/16 - 3-1/2 |
74.6 - 88.9 |
|
|
|
|
|
|
|
|
|
|
|
3-9/16 - 4-1/2 |
90.5 - 114.3 |
|
|
|
|
|
|
|
|
|
|
|
4-9/16 - 5-1/2 |
115.9 - 139.7 |
|
|
|
|
|
|
|
|
|
|
|
5-9/16 - 8-1/2 |
141.3 - 215.9 |
|
|
|
|
|
|
|
|
|
|
* The blue area shows the availability for the spiral bound/welded tubes.
(2) Tolerances:
|
Item |
Unit |
Diameter Range of Tubes |
||||
|
Inch |
<1.5 |
≥1.5～<2.5 |
≥2.5～<4.0 |
≥4.0～<6.0 |
≥6.0 |
|
|
mm |
<38.1 |
≥38.1～<63.5 |
≥63.5～<101.6 |
≥101.6～<152.4 |
≥152.4 |
|
|
Diameter Tolerance |
Inch |
±0.010 |
±0.010 |
±0.014 |
±0.016 |
±0.020 |
|
mm |
±0.25 |
±0.25 |
±0.35 |
±0.40 |
±0.51 |
|
|
Roundness |
Inch |
0.008 |
0.008 |
0.012 |
0.016 |
0.02 |
|
mm |
0.2 |
0.2 |
0.3 |
0.4 |
0.51 |
|
|
Wall Thickness |
Inch |
±0.0008 |
±0.0008 |
±0.0008 |
±0.02 |
0.02 |
|
mm |
±0.02 |
±0.02 |
±0.02 |
±0.051 |
±0.051 |
|
|
Straightness of the tubes |
Inch/foot |
0.012 |
0.012 |
0.015 |
0.018 |
0.018 |
|
mm/meter |
1 |
1 |
1.25 |
1.5 |
1.5 |
|
|
Welded Seam |
Inch |
0.008 |
0.008 |
0.012 |
0.012 |
0.012 |
|
mm |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
|
|
Length Tolerance |
Inch |
0.02 |
0.02 |
0.02 |
0.03 |
0.04 |
|
mm |
0.51 |
0.51 |
0.51 |
0.76 |
1 |
|
|
End Parallel |
Inch |
0.008 |
0.01 |
0.014 |
0.02 |
0.032 |
|
mm |
0.2 |
0.25 |
0.35 |
0.51 |
0.81 |
|
Note: Special specifications can be customized!
