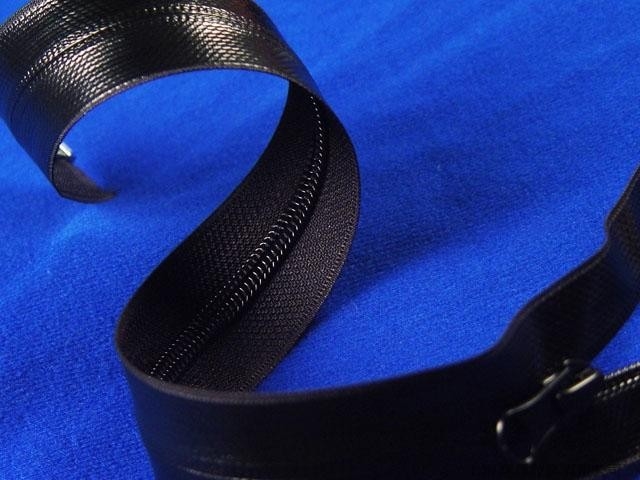

Black Airtight Nylon Open End Waterproof Zipper No.5 With Corrosion Prevention

Black Airtight Nylon Open End Waterproof Zipper No.5 With Corrosion Prevention

  • Black Airtight Nylon Open End Waterproof Zipper No.5 With Corrosion Prevention
Black Airtight Nylon Open End Waterproof Zipper No.5 With Corrosion Prevention
Product Details:
Place of Origin: Guangdong (China)
Brand Name: Dasun
Certification: ISO 9001
Model Number: WZ-0554
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Yard/Yards zipper
Price: negotiable
Packaging Details: 100yard /polybag; 1000yard/carton
Delivery Time: 7-15 days( depend on quantity for zipper)
Payment Terms: T/T,Paypal
Supply Ability: 50000 Piece/Pieces per Day
Contact Now
Detailed Product Description
High Light:

Water Resistant Zipper

,

extra long zippers



Black Airtight Nylon Open End Waterproof Zipper No.5 With Corrosion Prevention 0

Black Airtight  Nylon Open End Waterproof Zipper No.5 With Corrosion Prevention





Detailed Product Description

Size:5#

8 (8TZN CR airtight zipper)

Teeth material: cupronickel

Tape material: Chloroprene rubber (CR)

zipper length: 5-100CM (according to customers' requirements)

dual sealed or single sealed Zipper specifications: Width of zipper: 7.0 MM

Total width of zipper: 70.0 MM

Pulling intension of zipper: ≥250 N/IN

Strength of the top stop: ≥350 N

Strength of the bottom stop: ≥350 N

Airtight: ≥100 KPA Dive depth: ≥10 M

Airtight after 200 times reciprocation: ≥90 KPA

Dive depth after 200

times reciprprocation: ≥9M

Chain smooth: <55 N

Smooth of top and bottom stop: <75 N

Work temperature: -30℃-65℃

Chemistry resist Work safely after 24 hours deep in 93# gas







Black Airtight Nylon Open End Waterproof Zipper No.5 With Corrosion Prevention 1





Applications:

1.    ï¼‰ Bags and backpacks for daily use and outdoor activities such as cycling, biking, sailing, hiking, climbing and various others.

2.  ï¼‰ Watersports clothing; Tents, flexible covers

3. ï¼‰ Out-door gears

4.  ï¼‰ Diving suits (dry suits, wet suits) ; Protective clothing for leisure, safety and industrial applications (gas and chemical protection)

The technical info

The utility model discloses a novel nylon air-tight and waterproof zipper which comprises a zipper belt and zipper teeth, wherein, the nylon zipper teeth are arranged on a high-strength terylene mesh belt, a layer of TPU (thermoplastic polyurethane) is arranged on the zipper belt and the zipper teeth which are arranged at the front face of the zipper, the TPU layer is leaked into the gap of the zipper belt to form a mixing layer with the zipper belt, and the half side of each zipper tooth is safely coated and protected by the TPU (thermoplastic polyurethane). When the zipper teeth are closed, the peripheral TPU (thermoplastic polyurethane) of the zipper teeth is tightly combined together, the gap of the zipper can be well sealed with upper zipper teeth and lower zipper teeth, the thickness of the TPU layer of the zipper tooth is larger than that of the TPU layer of the zipper belt, and a convex edge is formed by adapting the TPU to coat and by the integral design. The utility model has the advantages of durability, low cost, water and air resistance, ultraviolet ray resistance, corrosion prevention, ageing and abrasion resistance, and the like.



Black Airtight Nylon Open End Waterproof Zipper No.5 With Corrosion Prevention 2



Tightness

The DaSun Zipper will hold 200 mbar air pressure. The DaSun Zipper  is less air-tight than the DaSun Zipper but is easier to open or close. Heavy bending may cause leakage. Please try to avoid!



Maintenance

The DaSun Zipper  is highly resistant to damage caused by dirt or sand. However if dirt or sand are present, the zipper should be cleaned with soap and water. Dirt particles can affect the sealing function if they get caught between the teeth chains. If the DaSun Zipper  closure is used to protect life or sensitive material, the sealing function and cleanness of the chain area should be double checked prior to every usage.



Operating Force

For the sealing function the DaSun Zipper  requires a fairly strong pull of the slider. Please allow a slightly higher pulling force as compared to regular zippers. A wet surface or lubricant on the outer flanges of the sealing profile reduces the pulling force greatly.



Resistance



UV-light

Excellent

Microbes

Good

Oil and petrol

Very Good

Hydrolysis (normal temperatures)

Good

Hydrolysis (extreme temperatures and humidity)

Sufficient

Temperature range

-30°C - +80°C

Light acids and alkalis (normal temperature)

Good
