| Place of Origin: | China |
| Brand Name: | RISHBIN |
| Certification: | CE |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Standard packing |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T, , L/C |
| Supply Ability: | 200 Sets Per Year |
| Production Material(mm): | 1250×(0.3～1.0)×L, PPGI | Main Motor Power: | 7.5KW |
|---|---|---|---|
| Number Of Stations: | 18 Stations | Cutter Material: | Cr12 Quenched |
| Cutting: | Post Cutting | Stacker: | Auto Stacker |
| High Light: | metal roof roll forming machine,roofing sheet roll forming machine |
||

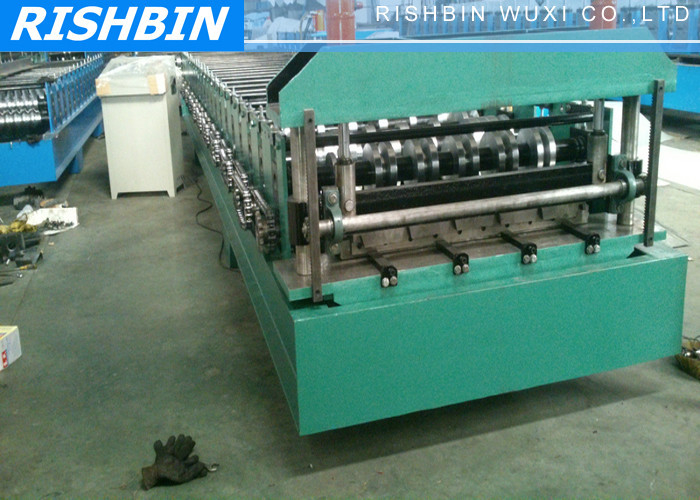

Specifications of Trapezoidal Metal Roof Panel Roll Forming Machine
| Product Name | Item | Description |
| Trapezoidal Metal Roof Panel Roll Forming Machine | Production Material(mm) | 1250×(0.3～1.0)×L, PPGI |
| Forming speed | 20 m/min | |
| Number of stations | 18 stations | |
| Roller stations type | Cassette | |
| Main motor power | 7.5KW | |
| Power of hydraulic station | 3KW | |
| Roller material | high quality 45 forged chrome-plated hardware | |
| Shaft diameter | 76mm | |
| Shaft material | high-quality steel 45 quenched and tempered after finishing treatment | |
| Hydraulic station pressure | 10～12 Mpa | |
| Cutter material | Cr12 quenched | |
| Decoiler | 10 Ton Automatic decoiler with loading car | |
| Electronic controlling system | Full-frequency PLC controlling system, error of cutting length ≤ 2mm | |
| Stacker | 8 meters Auto stacker | |
| Cutting | Post cutting with hydraulic driving |
Main Character of Trapezoidal Metal Roof Panel Roll Forming Machine
1. Simple structure,good appearance since the whole machine is used profiled steel structure and wholly manufacturing after welding, in order to make it running stable and reliable.
2. Completely automatic cutting, accurate length and position, trim cutting for rear of profile sheets, no deformation.
3. Easy installation, good performance for manufacturing in factory.
4. Low noise, high efficiency.
Structure of Trapezoidal Metal Roof Panel Roll Forming Machine
This corrugated roll forming machine consists of 10 tons automatic decoiler, chain driven transmission, cassette type roller stations, mainframe (including guiding platform), hydraulic cutting device, hydraulic system, electric controlling system and auto stacker.
Working Flow of Trapezoidal Metal Roof Panel Roll Forming Machine
Coiler loading → feed-in (sheet metal is put by guiding platform) → roll&forming → hydraulic cutting → auto stacker
Composition of Trapezoidal Metal Roof Panel Roll Forming Machine
|
No |
Item |
Qty |
|
1 |
Automatic uncoiler |
1 set |
|
2 |
Main roll forming machine |
1 set |
|
3 |
Control system |
1 set |
|
4 |
Cutting system |
1 set |
|
5 |
Auto stacker |
1 set |
Profile Drawing
Production Line Sketch (Just for reference)
Competitive Advantage
1. Automatic roll forming machine
2. High quality
3. Factory direct price
Warranty
The whole equipment including all the components will be guaranteed within one year except improper use.
Quick Detail
We are one of the leading suppliers and manufacturer in china and have been supplying and making roll forming equipment for the metal building construction industry for a long time.
We are Specialists in roll forming machines for the manufacture the production of building construction, suc as for the metal roofing and wall, various trapezoidal profiles can be custom manufactured. We build complete roll forming lines for roofing & cladding lines.
Our roof panel roll forming machines are special for manufacturing high quality steel roof & wall cladding panels, aluminum Lock Roofs. With our engineer’s many times improvements, the Ribbed Roof Panels machine design is perfect. The Ribbed Roof profile surface is smooth and power fee is lower, driven by chain.
It is specially designed forming roofing corrugated sheet, wall panel,floor deck, under mass-production. The highest speed of the line can reach to 30 M/min working with fully automaticlly stacking
system.
More information about steel roof panel profiles, Pls contact with us!
