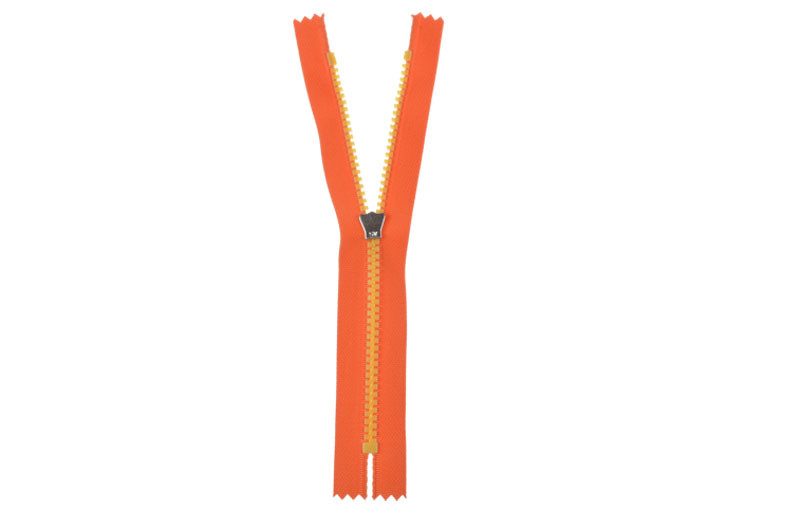

Long Chain 5# Open-End Resin Waterproof Zipper C / E Auto Lock Slider Orange

Long Chain 5# Open-End Resin Waterproof Zipper C / E Auto Lock Slider Orange

    • Long Chain 5# Open-End Resin Waterproof Zipper C / E Auto Lock Slider Orange
    • Long Chain 5# Open-End Resin Waterproof Zipper C / E Auto Lock Slider Orange
    • Long Chain 5# Open-End Resin Waterproof Zipper C / E Auto Lock Slider Orange
    • Long Chain 5# Open-End Resin Waterproof Zipper C / E Auto Lock Slider Orange
  • Long Chain 5# Open-End Resin Waterproof Zipper C / E Auto Lock Slider Orange

    Product Details:

    Place of Origin: Guangdong (China)
    Brand Name: Dasun
    Certification: ISO 9001
    Model Number: WZ-058

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 PCS
    Price: negotiable
    Packaging Details: 100Pcs/ppbag
    Delivery Time: 7-15 days( depend on quantity for zipper)
    Payment Terms: T/T,Paypal
    Supply Ability: 50000 Piece/Pieces per Day
    Contact Now
    Detailed Product Description



    Long Chain 5# Open-End Resin Waterproof Zipper C / E Auto Lock Slider Orange



    Long Chain 5# Open-End Resin Waterproof Zipper , C / E Auto Lock Slider Orange



    5# Waterproof Zipper  C/E Auto Lock slider


    Used for garments pockets


    Made of a new kind Polymer material


    Eco-friendly


    Good contractility, can be flexible well from -30° ~120°


    With excellent waterproof effection


    Also with good oxidation resistance



    We can supply you different types and sizes, length.





    Long Chain 5# Open-End Resin Waterproof Zipper C / E Auto Lock Slider Orange





    Product Description

    Main function: Splash water


    Type: Long chain


    Main colour: Black gradient

    Product Ranges:


    (1). Nylon TPU Waterproof Zipper Chain


    (2). Printing Waterproof Zipper Chain


    (3). Processing Films Lamination on Zipper.


    (4). Exclusive Seamless Decorative Materials (Decorative Films /Hot Melt Adhesive Films)



    The technical info

    The utility model discloses a novel nylon air-tight and waterproof zipper which comprises a zipper belt and zipper teeth, wherein, the nylon zipper teeth are arranged on a high-strength terylene mesh belt, a layer of TPU (thermoplastic polyurethane) is arranged on the zipper belt and the zipper teeth which are arranged at the front face of the zipper, the TPU layer is leaked into the gap of the zipper belt to form a mixing layer with the zipper belt, and the half side of each zipper tooth is safely coated and protected by the TPU (thermoplastic polyurethane). When the zipper teeth are closed, the peripheral TPU (thermoplastic polyurethane) of the zipper teeth is tightly combined together, the gap of the zipper can be well sealed with upper zipper teeth and lower zipper teeth, the thickness of the TPU layer of the zipper tooth is larger than that of the TPU layer of the zipper belt, and a convex edge is formed by adapting the TPU to coat and by the integral design. The utility model has the advantages of durability, low cost, water and air resistance, ultraviolet ray resistance, corrosion prevention, ageing and abrasion resistance, and the like.



    Long Chain 5# Open-End Resin Waterproof Zipper C / E Auto Lock Slider Orange



    Tightness

    The DaSun Zipper will hold 200 mbar air pressure. The DaSun Zipper  is less air-tight than the

    DaSun Zipper but is easier to open or close. Heavy bending may cause leakage. Please try to avoid!

    Maintenance

    The DaSun Zipper  is highly resistant to damage caused by dirt or sand. However if dirt or sand are present, the zipper should be cleaned with soap and water. Dirt particles can affect the sealing function if they get caught between the teeth chains. If the DaSun Zipper  closure is used to protect life or sensitive material, the sealing function and cleanness of the chain area should be double checked prior to every usage.

    Operating Force

    For the sealing function the DaSun Zipper  requires a fairly strong pull of the slider. Please allow a slightly higher pulling force as compared to regular zippers. A wet surface or lubricant on the outer flanges of the sealing profile reduces the pulling force greatly.

    Resistance

    UV-light

    Excellent

    Microbes

    Good

    Oil and petrol

    Very Good

    Hydrolysis (normal temperatures)

    Good

    Hydrolysis (extreme temperatures and humidity)

    Sufficient

    Temperature range

    -30°C - +80°C

    Light acids and alkalis (normal temperature)

    Good





    Size:5#



    8 (8TZN CR airtight zipper)

    Teeth material: cupronickel

    Tape material: Chloroprene rubber (CR)

    zipper length: 5-100CM (according to customers' requirements)

    dual sealed or single sealed Zipper specifications: Width of zipper: 7.0 MM

    Total width of zipper: 70.0 MM

    Pulling intension of zipper: ≥250 N/IN

    Strength of the top stop: ≥350 N

    Strength of the bottom stop: ≥350 N

    Airtight: ≥100 KPA Dive depth: ≥10 M

    Airtight after 200 times reciprocation: ≥90 KPA

    Dive depth after 200

    times reciprprocation: ≥9M

    Chain smooth: <55 N

    Smooth of top and bottom stop: <75 N

    Work temperature: -30℃-65℃

    Chemistry resist Work safely after 24 hours deep in 93# gas





    Long Chain 5# Open-End Resin Waterproof Zipper C / E Auto Lock Slider Orange
